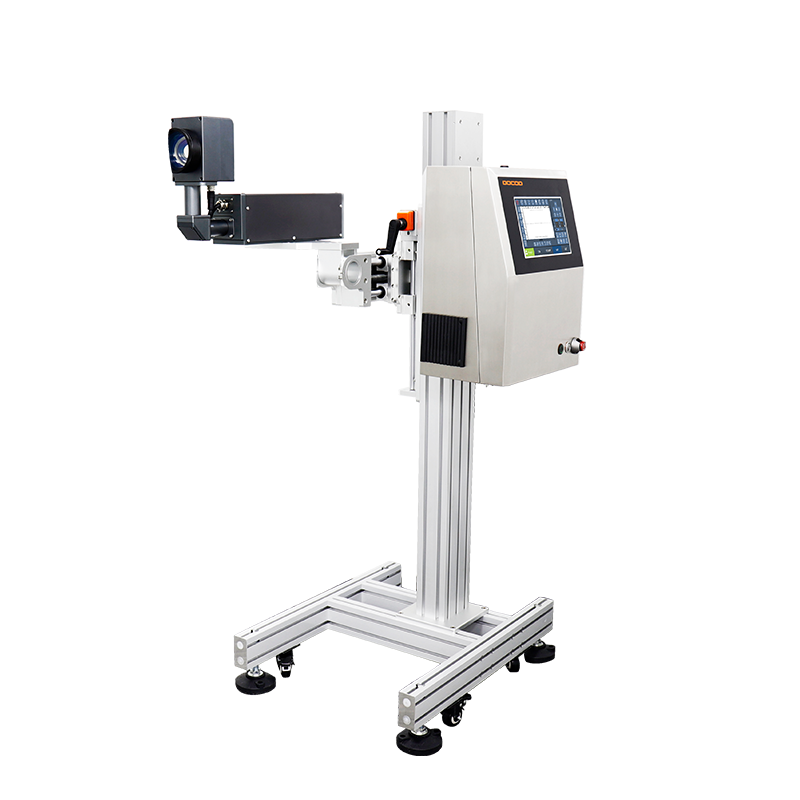

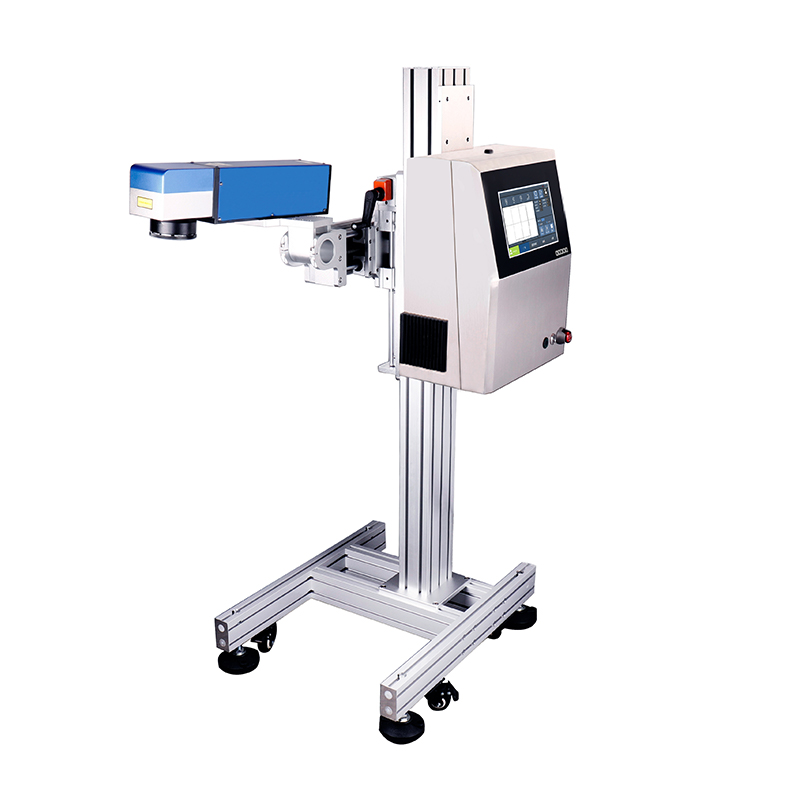

Fiber Laser Marking Machine

Dual Red Light Positioning
Small Size
Easy to Operate

Model	MF-LF020/30/50/60/80
Laser Power	20w/30w/50w/60w/80w
Laser Wavelength	1064nm
Marking Precision	3-5μ
Marking Area	50-300MM（Can choose other range）
Application	Metal Material
Marking Speed	≤18000mm/s
Min Line Width	0.02mm
Min Character	Adjust freely within marking range
Supported Formats	DXF/PLT/AI/PNG/JPG/BMP
Machine Power	500w/600w/800w
Voltage input	110v-220v/50-60Hz
Cooling Mode	Air cooling

Software system

Laser control system features

Hardware time is not lost (working continuously in stock for more than 1 year)

Supports network port and serial port communication, touch control and mouse control

Operating temperature -10℃ to +60℃

Panel waterproof and dustproof

Software support laser state alarm and monitoring

Software supports serial communication to turn on and off the laser

Support automatic removal of font intersections to achieve perfect laser jet effect

Support preview path and line maximum matching line quick check

Support path optimization function, customers do not need to move files on the interface, it can automatically adjust to the optimal position

Support marking total number shutdown save, boot into marking state and other Settings

Multiple languages: Simplified Chinese, traditional Chinese, Korean, Japanese, German, French, Arabic, Spanish, Portuguese, Vietnamese, Persian, Russian, Thai, Polish, and Turkish

Supports remote monitoring programs over the network

Supports real-time adjustment of information position during marking
